12ton trailer lashing for Ro-Ro vessel 50mm width | heavy duty cargo strap with twisted forged hook | China expert supplier for Ro-Ro lashing
Brand: LOUA or made on request
Origin: Nanjing, China
Webbing material: AA grade high-strength polyester PES polyester
Metal material: #45 high carbon steel (heat treated) + forged end fitting
Sewing material: AA grade high-strength polyester PES polyester
Product width: 50MM
Product length: bulk order
Safety factor: 2 times
Max breaking strength: 12 tons
Customization is available, to print your LOGO or customer name on webbing, Feel free to contact us!
Description

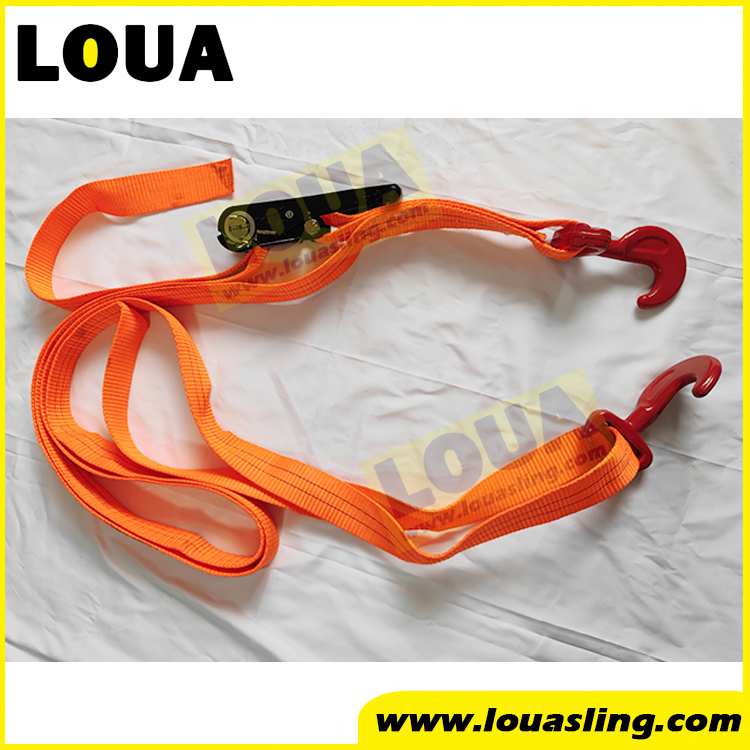

12Ton Trailer Lashing Straps (50mm Width)
For RO-RO & Heavy Cargo Securement
Product Overview
- Application: Designed for securing trailers, heavy machinery, and oversized loads on RO-RO vessels, flatbed trucks, and intermodal transport.
- Capacity: 12-ton break strength / 2:1 safety factor.
- Material: High-tensile polyester webbing with UV/abrasion-resistant coating.
- Compliance: Meets EN 12195-2, and marine-grade standards.
Key Features & Benefits of the 12ton trailer lashing
| Component | Specification | Advantage |
|---|---|---|
| 50mm Webbing | 12,000kg break strength, anti-slip texture, moisture-resistant | Reduces replacement costs; withstands harsh maritime/industrial environments. |

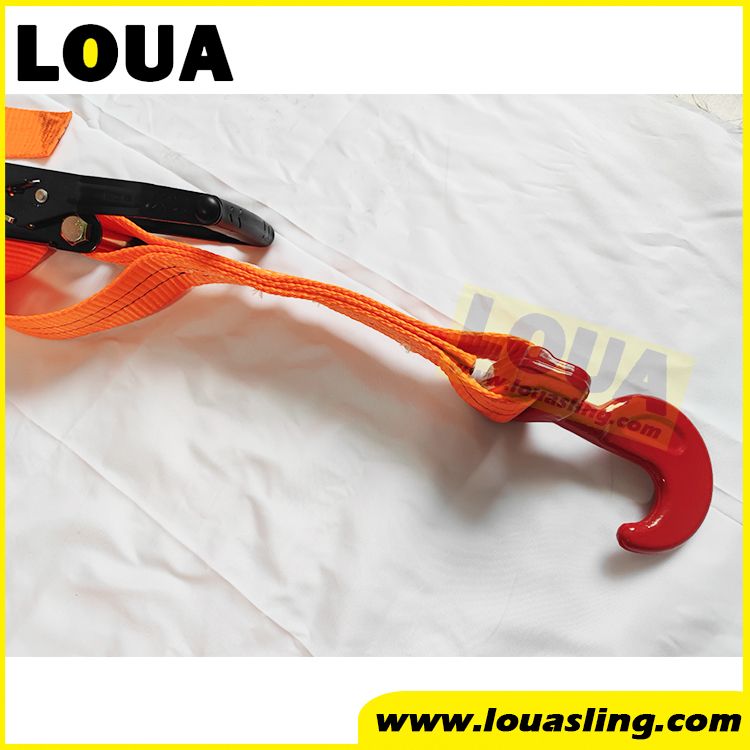

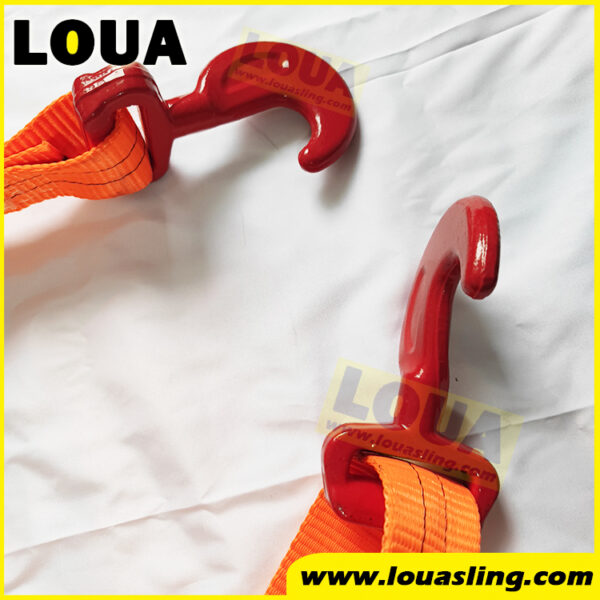

| Forged Hooks | heat-treated steel | Corrosion-proof anchoring; compatible with global trailer designs. |
| Ratchet Tensioner | Adjustable long side with 30cm tightening range | Ensures precise load distribution; adapts to irregular cargo shapes. |
| Batch Certification | Third-party tested by CCS, DNV, or BV upon request | Simplifies audits; ensures compliance for insurance and global shipping mandates. |
Technical Specifications of the 12ton trailer lashing
| Parameter | Detail |
|---|---|
| Width | 50mm |
| Length (Standard) | Fixed short side: 0.5m / Adjustable long side: 2.5m (custom lengths available) |
| Working Load Limit | 6,000kg (6 tons) |
| Safety factor | 2:1 |
| Temperature Range | -40°C to +120°C |
| Packaging | Bulk orders: cartons on pallet (custom packaging available)dfm,df. |
Compliance & Certifications
- Standards: EN 12195-2 or on request (quality management).
- Classification Societies: Batch-tested certifications available from CCS, DNV, Bureau Veritas.
- Traceability: Full documentation (test reports, material certs) provided per order.
Ideal For:
- RO-RO shipping lines securing trailers and wheeled cargo.
- Freight forwarders managing intermodal container loads.
- Heavy machinery transporters requiring ISO-compliant restraints.
- Warehousing/logistics firms prioritizing reusable, high-WLL straps.
Ordering & Customization
- MOQ: 100 units.
- Custom Options: Logo printing, non-standard lengths, specialized hooks (e.g., flat hooks, double J-hooks).
- Lead Time: 15–30 days (stock availability for standard specs).
Contact Us for Bulk Quotes or Technical Specs.
